Cutting Dies & Parts

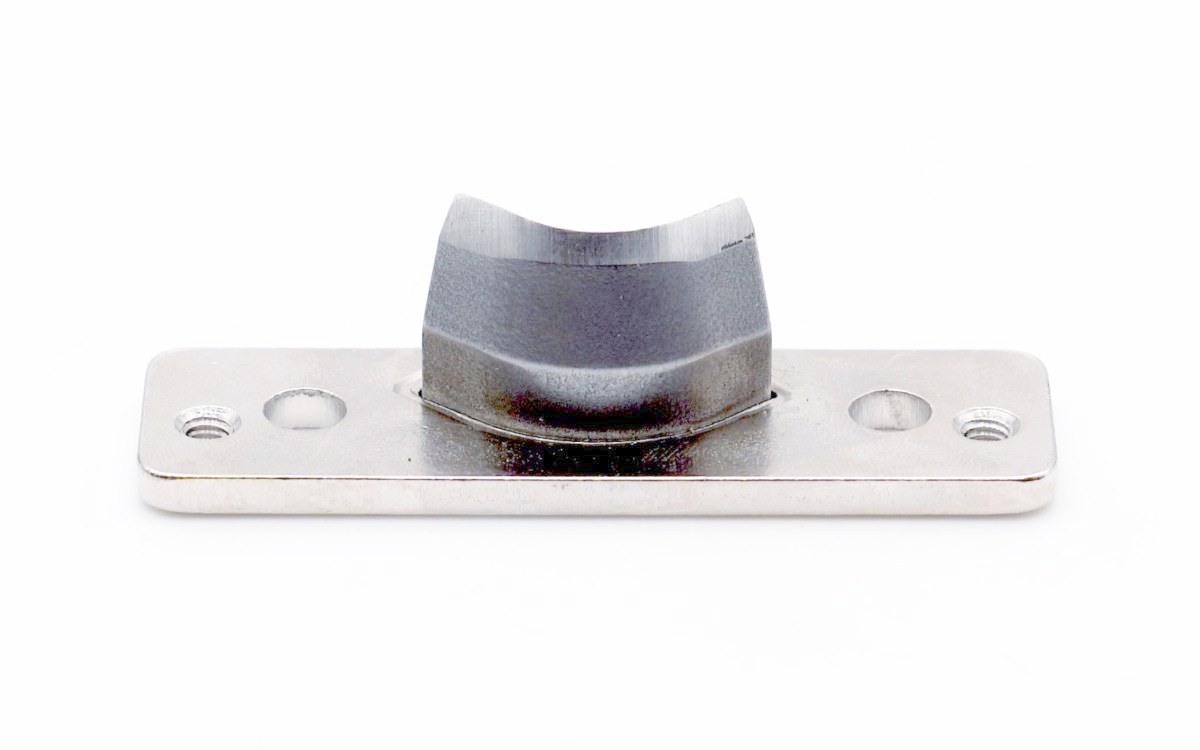

Corner Radius Die R10
Model 1200-K10 · 10 mm radius Fits Desktop Corner Cutter 1200The soft corner. A 10 mm radius rounds laminated cards, photo prints and tags so they feel finished in the hand and slide into a wallet without catching.
- 10 mm corner radius
- Mounts on the 1200 two-screw plate, same footprint as every die
- Stainless steel, cuts 100 sheets of 80 gsm paper per stroke on the 1200
- Sold as a die on its plate, ready to fit
Specifications
Model 1200-K10
| Model | 1200-K10 |
|---|---|
| Profile | Round corner, radius 10 mm |
| Fits | Desktop Corner Cutter 1200 |
| Mount | Two-screw plate |
| Cutting capacity | 100 sheets of 80 gsm PPC paper · stack height 10 mm |
| Material | Stainless steel, grey |
| Dimensions | 70 × 20 × 20 mm |
| Net weight | 50 g |
| Origin | Made in Taiwan |
Downloads
Drawing & parts list
1200-K10 drawing (PDF)on request
Dies & parts list (PDF)on request
Need a radius we do not list? Custom die profiles are available for OEM orders.
Also for the 1200
Other dies and parts
1200-K3.5
Corner Radius Die R3.5
Tight 3.5 mm corner · fits 12001200-K6
Corner Radius Die R6
Standard 6 mm corner · fits 12001200-K10
Corner Radius Die R10
Soft 10 mm corner · fits 12001200-D6
Round Hole Punch Die Ø6
6 mm hole for tags and hangers · fits 12001200-D21
Half-round Die 21 mm
Half-circle notch, thumb cut · fits 12001200-C15
Straight Blade Die 15 mm
Straight slit for slots and tabs · fits 12001200-PAD
Cutting Pad
Plastic cutting pads, 5 per bag, Ø25 mm · fits 12001200-RULER
Ruler Kit
Guide rails with scale for hole punching and half-round cuts (D6, D21), 9 parts · fits 1200Ready to talk numbers?
Send us the dies, quantities and target market. We reply in writing within two business days.
